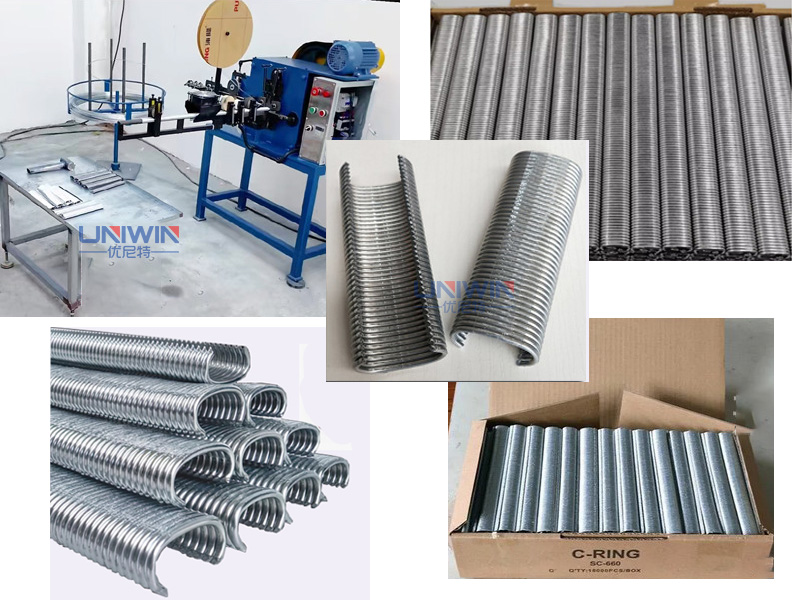

C-Type Hog Ring Staple Making Machine for Sausage Clips, Mattresses, and Pet Cages
A C-type hog ring staple making machine is designed to produce C-type metal staples — commonly referred to as hog ring clips. These C-type staples are made from galvanized wire or stainless steel and are formed precisely by the machine, ensuring consistent dimensions and a firm grip capability.

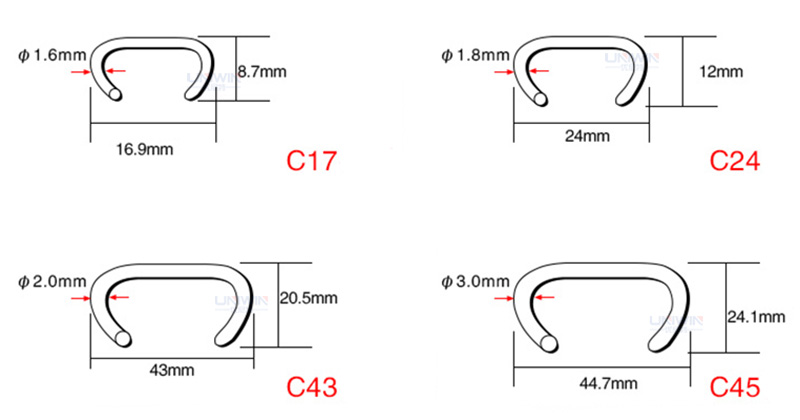

Most machines are compatible with sizes like C17, C24, and C43, and can produce up to 250-320 rings per minute, depending on the model.

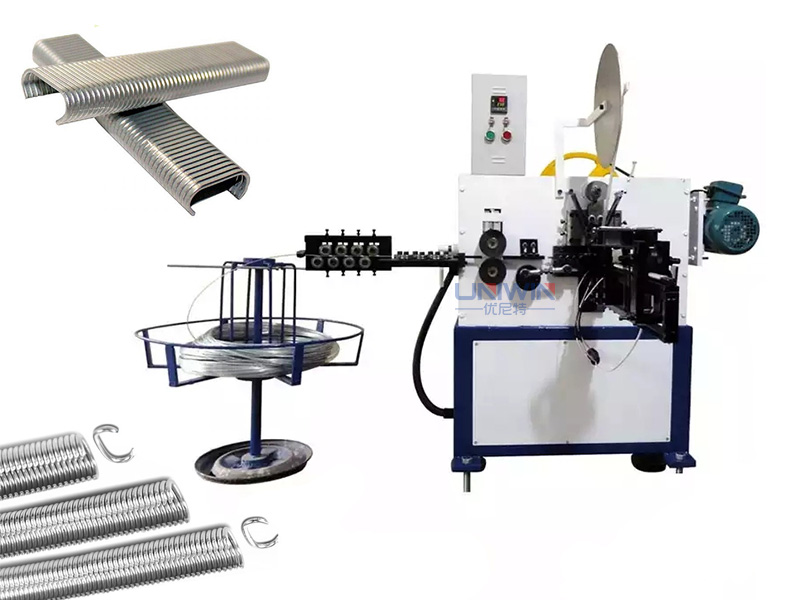

Automatic C-Type Hog Ring Clip Machine – Technical Specifications
The following are the core parameters of our C-type hog ring nail making machine, suitable for making sausage clip staples, mattress rings, and pet cage fasteners.
| Model | C Staple Nail Making Machine (C17/C24/C43…) |
|---|---|
| Power | 0.55/1.1kw |
| Wire Material | Galvanized Wire/Stainless Steel Wire |
| Nail Height | 8-22mm |
| Nail Diameter | 1.6-3.0mm |
| Shoulder Width | 16-45mm |
| Production Speed | 250-320psc/min |
| Machine Weight | About 500kg |
| Machine Size | 300*850*1000mm |
✅ With a fully automatic hog ring making system that integrates wire feeding, cutting, ring shaping, and gluing, you can achieve high output, consistent quality, and minimal labor cost.
Where C-Type Hog Rings are Used?
Common Applications of Hog Ring Staples include:
- Mattress Spring Bags
- Pet Cages (bird cages, rabbit cages, etc.)
- Car Seat Upholstery
- Sausage Clip Packaging
- Fencing Wire & Netting
- Lamp Holders, Cable Assembly
Why Choose Us: Reliable Supplier for Your Hog Ring Machine Needs
Contact us today for a free quote, mold customization, spare parts list, and shipping plan. We help you build a complete hog ring manufacturing line with confidence and quality.
