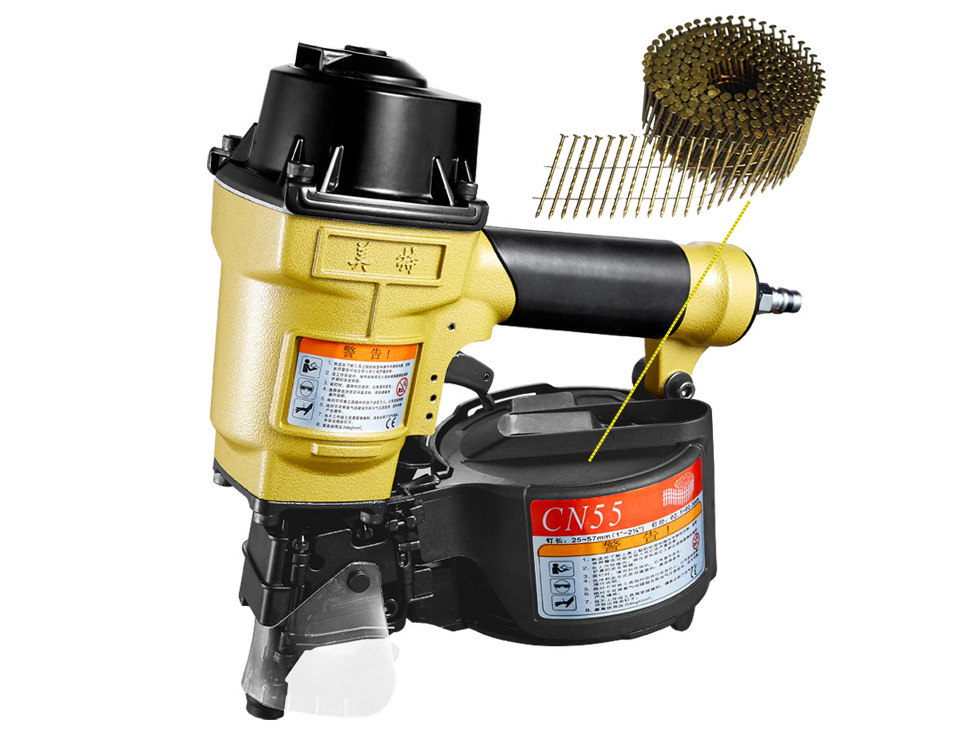

Industrial Pneumatic Coil Nailer/Coil Nail Gun
The pneumatic coil nailer is a pneumatic tool that uses compressed air to fire 15° coil nails continuously. The coil nailer uses the pneumatically driven high-strength steel striker/firing pin to quickly and accurately shoot nails into the wood, improving nailing efficiency, ensuring firm fixation, and reducing labor costs.
The air-powered coil nailer is a high-efficiency nailing equipment, widely used in:
- Container pallet manufacturing
- Wooden box packaging
- Fence, guardrail, roof structure installation
- Wooden structure house and furniture assembly
- Various medium and heavy woodworking and nailing scenarios
Industrial Coil Nailer Specification
The following is the technical parameter table of the main nail coiler models:
| Model | CN55 | CN65 | CN70B | CN80B | CN90 | CN100 |
|---|---|---|---|---|---|---|
| Nail Length | 25-57mm | 38-65mm | 45-70mm | 50-83mm | 45-90mm | 65-100mm |
| Nail Diameter | 2.1-2.3mm | 2.3-3.3mm | 2.5-2.9mm | 2.5-3.3mm | 2.5-3.3mm | 2.5-3.3mm |
| Cap Diameter | 5.0-5.7mm | 5.7-7.3mm | 5.7-7.0mm | 6.0-7.5mm | 5.5-7.7mm | 6.5-7.5mm |
| Capacity | 300-400pcs | 300pcs | 225-300pcs | 300pcs | 300-350pcs | 150-300pcs |
| Air Pressure | 70-100psi | 70-100psi | 70-100psi | 70-100psi | 70-100psi | 100–120psi |
| Air Inlet | 1/4" NPT | 1/4" NPT | 1/4" NPT | 1/4" NPT | 3/8" NPT | 3/8" NPT |
| Weight | 2.75kg/6.1lbs | 3.18kg/7.0lbs | 3.8kg/8.3lbs | 4.0kg/8.8lbs | 4.2kg/9.3lbs | 5.7kg/12.7lbs |
| Dimension | 270×131×283mm | 310×130×328mm | 336×143×318mm | 347×137×348mm | 270×131×283mm | 405×143×403mm |
Highlights of 15 Degree Coil Nailer for Industrial Use
High-Strength Firing Pin: Made of American tool steel, wear-resistant and impact-resistant, with a service life of more than 500,000 times.
Durable Driver: Equipped with a thickened driver and bumper.
Dual-Mode Fire Mechanism:
“S” Mode: single-shot sequential nailing.
“C” Mode: contact nailing, fast continuous firing.
Large-Capacity Nailing: can hold 300-400 coil nails.
Aluminum Alloy Body: sturdy and lightweight, suitable for high-intensity industrial environments.
Adjustable Depth: The nailing depth can be adjusted to adapt to different woods and scenes.
360°Exhaust Deflector Design: The exhaust direction is adjustable to improve operating comfort, and the exhaust design ensures fast heat dissipation.
Comfort Grip: rubber non-slip handle, comfortable grip.
Coil Nail Compatibility Standards
There are various models of pneumatic coil nail guns, and the coil nail specifications they are compatible with are also different. The following is a unified description:
- Nail Shank Type: Smooth, Ring, Screw Shank
- Nail Diameter Range:1-3.8mm
- Nail Cap Diameter: 0-7.7mm
- Nail Length Range: 25-130mm
- Nail Structure: 15-Degree Wire Collated Coil Nails
- Surface Treatment Option: Zinc-plated, anti-rust coating, phosphate coating, etc.
