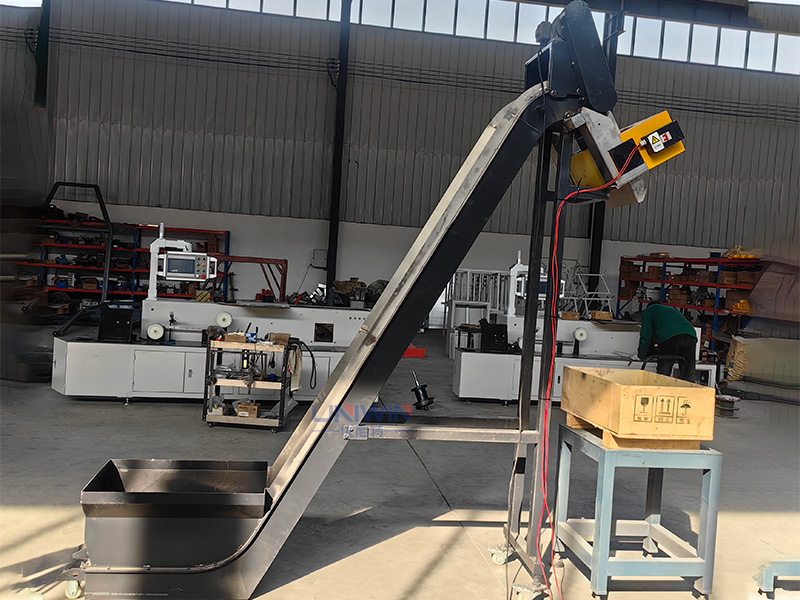

Magnetic Conveyor with Nail Demagnetization

The Second Generation Magnetic Conveyor with Nail Demagnetization

Many of the customers we contacted want to use a magnetic conveyor with nail demagnetization, so we made technical improvements and added a demagnetization function based on the first generation of magnetic conveyors.

The new generation magnetic conveyor can stably and continuously convey the nails processed by the thread-rolling machine to the vibrating plate of the coil nail-making machine to complete the coil nail production. Its unique demagnetization function effectively prevents the nails from being magnetized during feeding, avoiding nails clump or stick to each other.
Our magnetic conveyor with nail demagnetization can not only feed nails, but also some small metal objects, such as bolts, metal washers, springs, steel needles, etc.

Parameters of Magnetic Feeding Machine with Nail Demagnetization

Main Motor: 200W
Feeding Speed: ​3000psc/min
Nail Length: 19-130mm
Feeding Height: 2500mm
Magnet Type: Ferrite Magnet Chain
Slide Type: Stainless Steel Slide
Dimension: 2100×500×2500mm
Machine Weight: 160kg

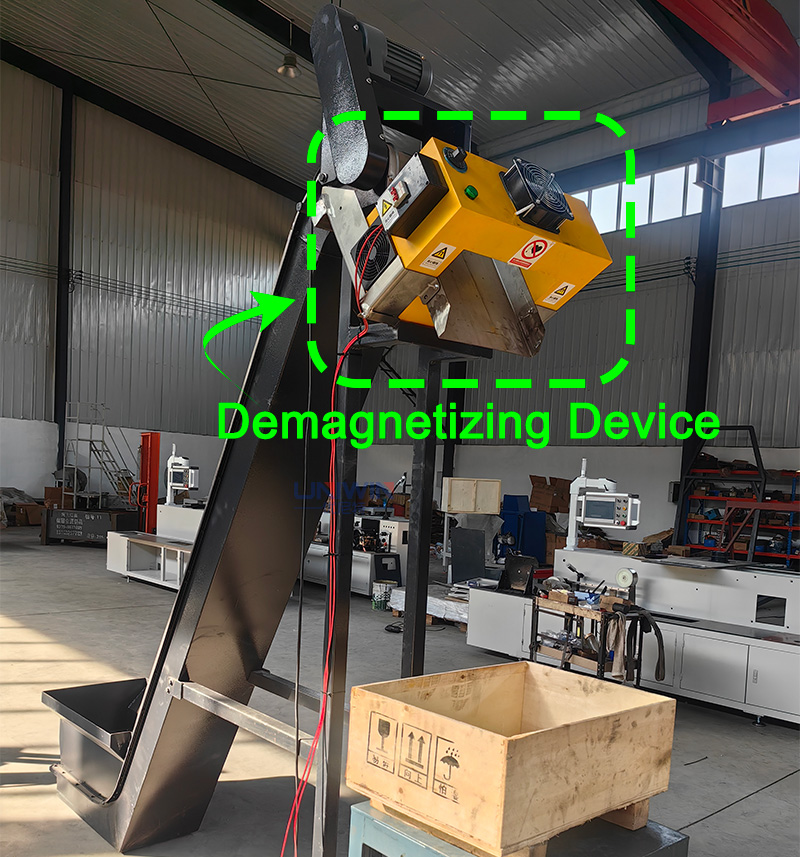

New Technology Highlights of Magnetic Nail Conveyor

If you want to know whether this device suits your metal fastener, please contact us!
