Wire Drawing Machine

Contact Us

Max Wire Inlet: 8 mm
Drum Size: 550mm
Speed: 55 rpm
Power: 15 kw each motor
Product description: Wire Drawing Machines to draw low carbon steel wire from big diameter 6.5mm to smaller diameter such as 3mm, 1.8mm etc for nail making factory, binding wire making factory etc.

Product Details

What is wire drawing machine?

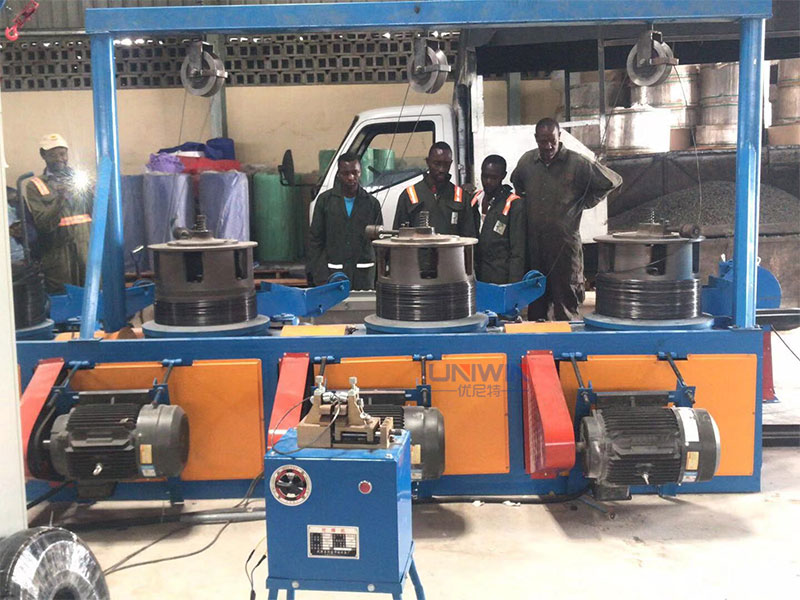

wire drawing machine

The wire drawing machine is a fully automatic device used in the metalworking industry to reduce the wire to the required diameter by pulling the wire through a series of wire drawing dies with decreasing diameters. And it is always used to make nails with the nail making machine. The machine is widely used nowadays and has two or more drums that grip the wire and pull it through the dies with high output. And it can produce wire diameters ranging from 2mm to 8mm.

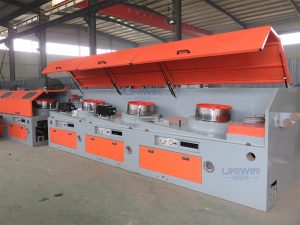

There are several types of wire drawing machines, including the combined drum wire drawing machine, straight line wire drawing machine, water tank wire drawing machine for binding wire, and horizontal single drum wire drawing machine.

As one of China’s most professional wire drawing machine manufacturers, we specialize in designing, manufacturing, and selling the machine. We focus on machine quality, offer professional after-sale service for customers, and have a good presence in international markets, such as Kenya, Uganda, Ghana, Saudi Africa, Turkey, America, Brazil, etc.

Advantages of wire drawing machine

The advantages are mainly reflected in the following aspects:

  1. High production efficiency. Modern machines have programmable controls and automated features for efficient production with minimal supervision.
  2. Precise diameter control. The diameter of the drawn wire can be accurately controlled by selecting dies with precision-machined holes. Fine wire gauges can be obtained using multiple draws.
  3. Smooth surface. The machine produces wires with a smooth, bright surface finish, and no finishing is required.
  4. Cost saving. Processing metal materials through this machine can reduce labor costs and material waste, thereby reducing production costs.
  5. Easy to operate. The operation of the machine is relatively simple, requiring only a small number of personnel to operate and maintain.
  6. Strong scalability. The machine can be processed through different wire drawing molds, so it is suitable for metal materials of different specifications and shapes and has strong scalability.

Wire drawing machine parameter

2Drum Size550mm
3Drum Speed55-70rpm
4Max Wire Diameter7/8mm
6Machine Weight3T (3 Drums Type)

Components of wire drawing machine

Wire reel: It is used to place the original wire coil. The wire is unwound from the reel and fed into the machine.
Wire drawing die: The die is a tool with a hole through which the diameter of the wire is reduced. The mold is usually made of tungsten carbide.wire drawing dies

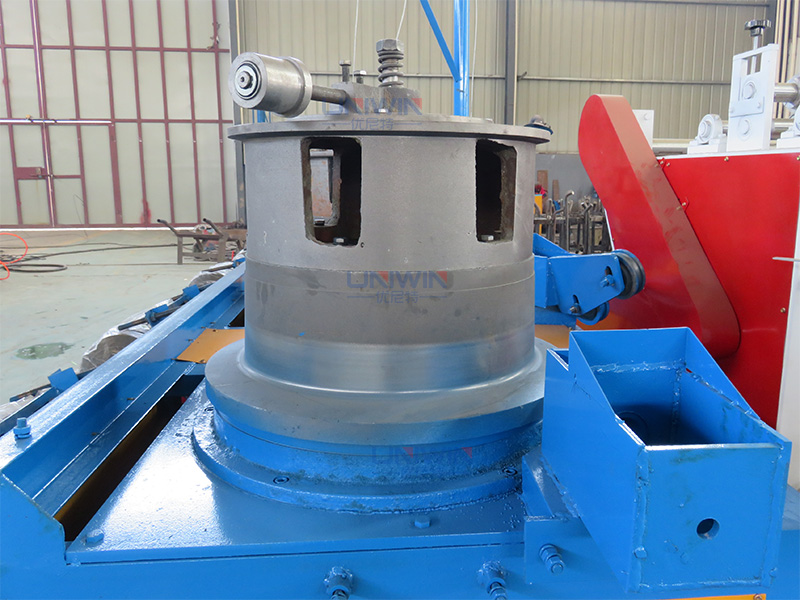

Capstan: The capstan is a rotating drum that helps feed and pull the wire through the die. It provides drawing force and speed control for the drawing process.


Drawing die box: It is a device for placing wire drawing powder and drawing dies.

wire drawing die box

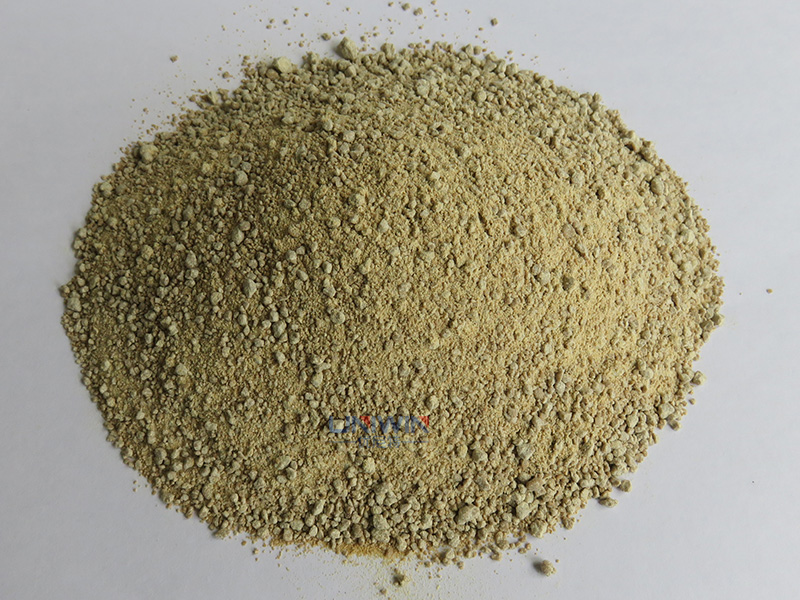

Wire drawing lubricants: The wire passes through wire drawing powder before entering the drawing die to reduce the friction between the wire and the die.

wire drawing powder

Auxiliary equipments for wire drawing machine

The wire drawing machine is used to reduce the diameter of the wire by pulling the wire through a series of dies. The following two auxiliary equipment are necessary to ensure the machine’s smooth operation and improve the drawn wire’s quality.

  1. Sharpening mill. Before feeding the wire into the drawing machine, the wire tip needs to be sharpened or tapered to pass through the drawing die.
  2. Butt welding machine. The butt welding machine is one of the classic resistance welding processes used in metal processing. It is mainly used for welding small diameter wires, rods and plates. Its working principle is to connect broken wires under high pressure, then fully heat the contact area and apply pressure to weld them together, ensuring the continuous operation of the wire drawing machine. The heat source of the welding process is the current resistance of the two opposite surfaces.

Wire drawing machine price

The wire drawing machine price is mainly different from the drum quantity. Here are some typical price ranges:

one drum: USD2000-4000
two drums: USD4000-8000
Three drums: USD8000-16000

Company Introduction:

Uniwin Machinery, established in 1988, is located in Zhengzhou City, China. After over 30 years of development, UNIWIN has become a famous nail making machine manufacturer with mature technology and excellent after-sales service.

Our main products are Automatic Nail Making Machine, Wire Drawing Machine, High Speed Nail Making Machine, Coil Nail Collating Machine, Nail Thread Rolling Machine, Roofing Nail Making Machine, U Nail Making Machine, Duplex Nail Making Machine, Nail Packing Machine, Chain Link Fence Making machine, Barbed Wire Making Machine, Staple Pin Making Machine, Brad Nail Making Machine, Copper Coated Coil Nail Welding Wire, Assembly Machine for Collated Screws, Wire Drawing Powder, etc. And High Quality Machine Spare Parts: Wire Drawing Mould, Nail Mould, Nail Cutter, Nail Punch Bar, etc. Quality and Service are our priorities. We have exported to more than 60 countries all over the world, including the USA, Mexico, Saudi Arabia, Vietnam, Kenya, Nigeria, Egypt, Turkey, Italy, Poland, etc. We sincerely wish to establish good cooperation with you and look forward to our win-win cooperation.
