N/K/P Series Staple Making Machine
Model: DM-N30 Staple Machine
Motor Power: 7.5kw
Operating Voltage: 380/50Hz
Number of Stroke: 60-120times/min
Daily Output (8 Hours): 700-1200kg
Wire Band Width: 60-150mm
Wire Band Thickness: 0.4-1.5mm
Machine Weight: 1560kg
Nail Type Available: N/K/P/sealing nail 92/90/114/116, etc.

What is N/K/P series staple making machine?

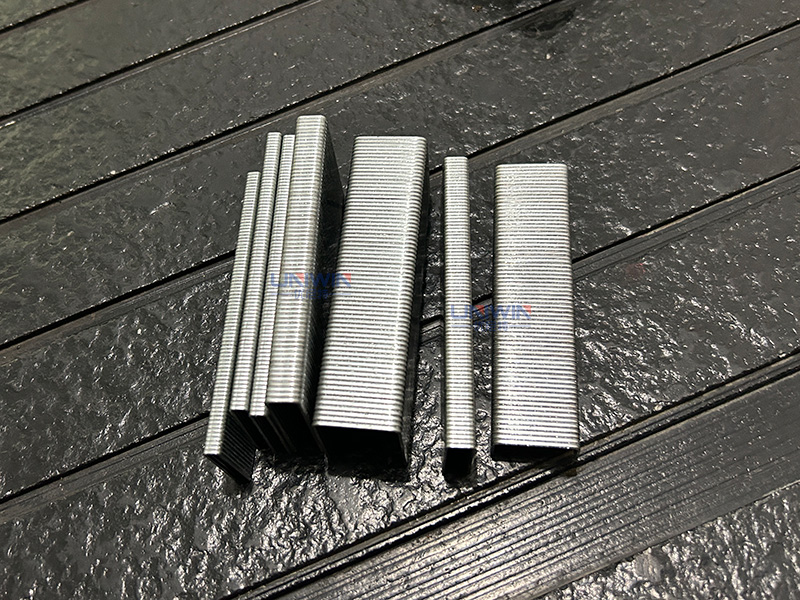

The N/K/P series staple making machine adopts the PLC control system and is specially used to produce large-size pneumatic U-shaped staples such as N nails, K nails, P nails, etc.

The raw material for making staples is galvanized wire. These staples are loaded into pneumatic staple guns, which use compressed air to rapidly and efficiently drive the staples into various materials. They are commonly used in construction, upholstery, woodworking, and other applications requiring strong and durable fastening.

Staple nail making machine working video

Staple pin making machine parameters

No.	Item	Specification
1	Motor Power	7.5kw
2	Operating Voltage	380/50Hz
3	Number of Stroke	60-120times/min
4	Daily Output (8 Hours)	700-1200kg
5	Wire Band Width	60-150mm
6	Wire Band Thickness	0.4-1.5mm
7	Nail Type Available	N/K/P/sealing nail 92/90/114/116, etc.
8	Feed/Push Method	Pneumatic
9	Machine Size	150011001800mm
10	Machine Weight	1560kg

Staple forming machine

Staples production line

Galvanized Wire→Wire Flattening Machine/Water Tank Wire Drawing and Flattening Machine→Multi Wire Gluing Combiner→Staple Forming Machine

Notes: The whole production line is best to be equipped with two staple forming machines.

Wire flattening machine

Water Tank Wire Drawing and Flattening Machine

Wire gluing combining machine

Staple making machine price

The staple making machine price is USD 5000-8000. Contact us for your specific quotation.

Company Introduction:

Uniwin Machinery, established in 1988, is located in Zhengzhou City, China. After over 30 years of development, UNIWIN has become a famous nail making machine manufacturer with mature technology and excellent after-sales service.

Our main products are Automatic Nail Making Machine, Wire Drawing Machine, High Speed Nail Making Machine, Coil Nail Collating Machine, Nail Thread Rolling Machine, Roofing Nail Making Machine, U Nail Making Machine, Duplex Nail Making Machine, Nail Packing Machine, Chain Link Fence Making machine, Barbed Wire Making Machine, Staple Pin Making Machine, Brad Nail Making Machine, Copper Coated Coil Nail Welding Wire, Assembly Machine for Collated Screws, Wire Drawing Powder, etc. And High Quality Machine Spare Parts: Wire Drawing Mould, Nail Mould, Nail Cutter, Nail Punch Bar, etc. Quality and Service are our priorities. We have exported to more than 60 countries all over the world, including the USA, Mexico, Saudi Arabia, Vietnam, Kenya, Nigeria, Egypt, Turkey, Italy, Poland, etc. We sincerely wish to establish good cooperation with you and look forward to our win-win cooperation.
